3mm Damp Proof Mesh Membrane - 1.2m Bundles | Resincoat


UberSeal 3mm Damp Proof Mesh Membrane - 1.2m x 10m Bundle

DPM006

Designed for walls affected by high salt contamination, the UberSeal 1.2m Mesh Membrane Bundle offers extra height for added coverage where it's needed most, ideal for tackling high tide marks and salt banding. Available in a 12m² bundle, this all-in-one kit makes internal damp proofing fast and hassle-free. Whether you're a tradesperson working on chimney breasts or a DIYer dealing with rising damp, this kit provides a reliable, professional-grade solution with a strong key for direct rendering or dot & dab finishes.



  • 1.2m Height for High Salt Bands
  • Complete Damp Proofing Kit
  • Blocks Salts & Moisture
  • Strong Mesh for Direct Finish
  • Quick & Easy Installation
  • Trusted by DIY & Trade



Hurry! only 499 items left in stock.
£145.20
£161.33
Save 10%
Tax included
Quantity

Add to Wishlist

UberSeal 3mm Mesh Membrane - 1.2m x 10m Kit (12m²)

UberSeal 3mm Mesh Membrane is an excellent internal damp proofing solution for addressing hygroscopic salt contamination on various substrates, including chimney breasts. With its 1.2-metre height, it stands taller than typical standard mesh membranes to account for high tide marks from rising damp more effectively. After treatment of present damp, it acts as a robust barrier against further moisture and salt damage, providing a solid foundation for finishes like dot and dab plasterboard or direct rendering whilst it's slim, 3mm profile is perfect when there are concerns regarding how much space there is to work with.

Resolves the effects of Salt Contamination

UberSeal 3mm Mesh membrane is the go-to solution for treating salt-affected surfaces. Such surfaces may seem damp during humid conditions due to hygroscopic salts in the wall drawing moisture, creating the illusion of a wet, dark spot. Frequently mistaken for penetrating or rising damp, this issue is effectively addressed by the membrane, which isolates the contaminated underlying substrate from the new finish, thereby reducing any indications of moisture.

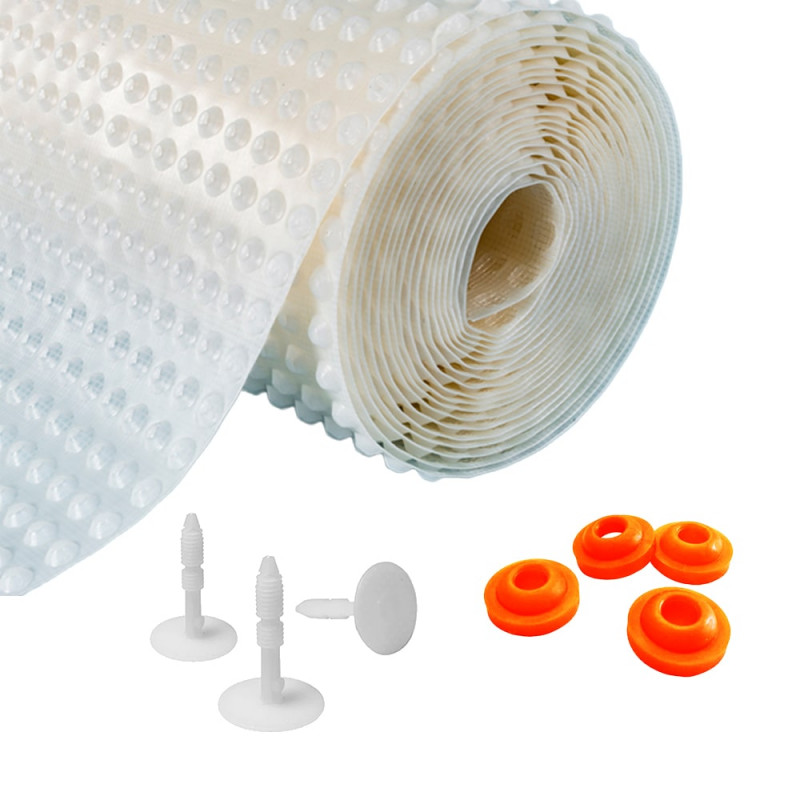

KIT QUANTITIES

  12m²
1 x Roll of UberSeal 1.2m x 10m 3mm Meshed Membrane
4 x UberSeal Plaster Plugs 60mm (bag of 100)
4 x UberSeal Sealing washers (bag of 100)



INSTALLATION

The UberSeal 3mm 1.2m Mesh Membrane Bundles come equipped with UberSeal Plaster Plugs for attachment to target walls. The plugs should also be sealed by wrapping either Brick Plug Sealing Washers (supplied) or UberSeal Butyl Rope firmly around the head of the plug to create a waterproof seal before they are hammered into place.

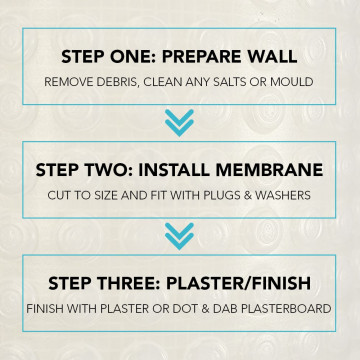

The following is the recommended application method:

  1. Ensure the base is cleaned to achieve the smoothest surface possible. Eliminate any plaster that is damaged, loose, or disintegrating.
  2. Use a sharp blade or scissors to trim the membrane to the desired dimensions.
  3. Secure the 3mm membrane (mesh side exposed) to the surface using plugs. Installation can be either horizontal or vertical.

Approximately 15 plugs per square meter are recommended, each plug should be no further than 250mm horizontally or vertically from one another. On curved or uneven surfaces, plugs/fixings should be closer together to ensure that the mesh is not too loose from the wall.

Jointing - The 3mm Mesh Membrane is highly flexible and can be effortlessly moulded around corners. As an alternative, edges can be brought together (butt jointed) and made watertight with UberSeal Fleece Overstrip.

Finishing - Plasterboard panels can be attached to the membrane using the dot and dab technique, ensuring at least 50% of the board is covered with the adhesive dabs. This provides a dry surface that is primed for instant decoration.



Beyond its physical resilience, the UberSeal 3mm Mesh Membrane excels as a substrate for lime mortars, renders, and plasters, thanks to the design of its square 3mm studs that adeptly manage corner detailing and surface irregularities. Paired with our recommended drainage solutions it promises a waterproofing installation of unmatched reliability and performance.

: DPM006
: 499 Items
Hurry! only 499 items left in stock.
